Implementing K Means Clustering From Scratch

K-Means clustering is one of the simplest and most effective unsupervised machine learning algorithms. It is widely used for tasks such as customer segmentation and anomaly detection

AI Summary

This blog provides a comprehensive tutorial on K-Means clustering, an unsupervised machine learning algorithm used for grouping data into clusters. It explains the algorithm's steps, including initialization, assignment, and update phases, and demonstrates a from-scratch implementation using NumPy and Pandas on the Iris dataset. The tutorial covers both manual implementation and Scikit-Learn's approach, showcasing how the algorithm works through code, mathematical formulas, and visualization of clustering results.

In this blog, we'll break down the concept of K-Means clustering, implement it from scratch using NumPy and Pandas, and apply it to the famous Iris dataset. We'll follow a procedural, function-based approach, just like you would in a Jupyter notebook. Finally, we'll see how to implement the same using Scikit-Learn.

What is K-Means Clustering?

K-Means clustering is an unsupervised learning algorithm used to group data into \( k \) clusters. The goal is to minimize the variance within each cluster, ensuring data points in the same cluster are as similar as possible.

Steps of K-Means Algorithm

1. Initialization: Choose \( k \) initial cluster centroids randomly.
2. Assignment: Assign each data point to the nearest centroid using the Euclidean distance formula:

\[ \text{Distance} = \sqrt{\sum_{i=1}^{n}(x_i - \mu_i)^2} \]

1. Update: Calculate new centroids as the mean of all points in a cluster.

\[ \mu_k = \frac{1}{N_k} \sum_{i=1}^{N_k} x_i \]

1. Repeat: Perform the assignment and update steps until centroids no longer change or a maximum number of iterations is reached.

Implementation K Means Clustering

1. Importing Libraries

import numpy as np
import pandas as pd
from sklearn.datasets import load_iris
from sklearn.metrics import silhouette_score
import matplotlib.pyplot as plt

2. Preparing the Dataset

iris = load_iris()
data = pd.DataFrame(iris.data, columns=iris.feature_names)
true_labels = iris.target
data.head()

This loads the Iris dataset and converts it into a Pandas DataFrame for easier manipulation.

3. Building the Model

Some Helper Functions

def distance(here, there):
    return np.sqrt(np.sum((here - there) ** 2))

This function calculates the Euclidean distance between two points.

def assign_clusters(data, centroids):
    labels = []
    for point in data:
        distances = [distance(point, centroid) for centroid in centroids]
        labels.append(np.argmin(distances))
    return np.array(labels)

We assign each point to the nearest cluster based on the calculated distances.

def update_centroids(data, labels, k):
    return np.array([data[labels == i].mean(axis=0) for i in range(k)])

Centroids are updated by taking the mean of all points in each cluster.

K-Means Clustering

def kmeans(data, k, max_iters=100, tol=1e-4):
    centroids = data.sample(n=k).to_numpy()
    data = data.to_numpy()
    for _ in range(max_iters):
        old_centroids = centroids.copy()
        labels = assign_clusters(data, centroids)
        centroids = update_centroids(data, labels, k)
        if np.linalg.norm(centroids - old_centroids) < tol:
            break
    return labels, centroids

This function brings everything together to apply K-Means clustering.

Forming the Clusters

labels, centroids = kmeans(data.iloc[:, [2, 3]], k=3)

Here we have only used feature at index 2 and 3 which are Petal Width and Petal Length.

print(f"Silhouette Score: {silhouette_score(data.iloc[:, [2, 3]], labels):.2f}")

Silhouette Score: 0.66

4. Visualizing Results

# Plotting actual classes
plt.figure(figsize=(10, 4))

plt.subplot(1, 2, 1)
plt.scatter(data.iloc[:, 2], data.iloc[:, 3], c=iris.target, cmap='brg', zorder=2)
plt.xlabel('Petal Length')
plt.ylabel('Petal Width')
plt.title('Actual Classes')
plt.grid()

# Plotting predicted clusters
plt.subplot(1, 2, 2)
plt.scatter(data.iloc[:, 2], data.iloc[:, 3], c=labels, cmap='winter', zorder=2)
plt.xlabel('Petal Length')
plt.ylabel('Petal Width')
plt.title('K-Means Clustering Results')
plt.grid()

plt.tight_layout()
plt.show()

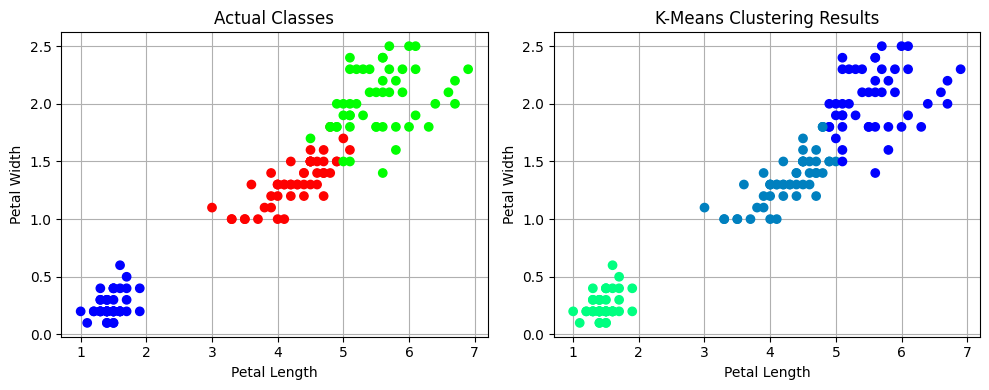

This plots both the actual classes and the predicted clusters side by side for comparison.

K-Means using Scikit-Learn

from sklearn.cluster import KMeans

kmeans_model = KMeans(n_clusters=3, random_state=42)
kmeans_model.fit(data)
preds = kmeans_model.predict(data)

With just a few lines of code, Scikit-Learn simplifies K-Means clustering.

Conclusion

K-Means clustering is a fundamental unsupervised learning algorithm. Implementing it from scratch provides valuable insight into its inner workings. By following a step-by-step approach, you can better understand how data points are grouped, how centroids are updated, and how clusters are formed.
