Implementing Decision Tree from Scratch¶

Decision trees are powerful models that simulate human decision-making by breaking down complex problems into clear, step-by-step choices. They are widely used for classification and regression tasks, providing intuitive and interpretable results.

AI Summary

This blog offers a detailed exploration of decision trees, focusing on their mathematical foundations and practical applications. It explains concepts like Gini impurity, information gain, and data splitting, providing a clear understanding of how decision trees make decisions. Through a step-by-step approach, readers gain insights into building and evaluating decision trees. The blog concludes with a comparison to a standard implementation, reinforcing the learning experience.

What is Decision Tree¶

A decision tree is a supervised machine learning algorithm used for classification and regression tasks. It is a tree-like structure where each internal node represents a decision based on a specific feature, each branch represents the outcome of that decision, and each leaf node provides the final prediction.

Understanding Decision Tree¶

The core idea behind decision trees is to minimize impurity when making splits. The impurity of a node can be measured using metrics like:

Gini Impurity: measure of how mixed or impure a dataset is, commonly used in decision tree algorithms to determine the best way to split data for classification

\[ Gini(D) = 1 - \sum_{i=1}^{C} p_i^2 \]

where \(p_i\) is the probability of class \(i\) in the dataset \(D\).
Entropy: Entropy measures the disorder or randomness in a dataset. It's calculated by summing the weighted probabilities of each possible outcome, using the logarithm of the probabilities

\[ H(D) = - \sum_{i=1}^{C} p_i \log_2 p_i \]

The goal is to select the split that results in the lowest weighted impurity of the child nodes.
Information Gain: Information gain measures the reduction in entropy (or increase in purity) achieved by splitting a dataset on a particular feature, The information gain for a split is calculated as:

\[ IG = H(D) - \sum_{i=1}^{k} \frac{|D_i|}{|D|} H(D_i) \]

where \(D_i\) represents the subsets resulting from the split.

Implementation of Decision Tree¶

1. Import Libraries and Load the Dataset¶

iris = datasets.load_iris()
data = pd.DataFrame(data= np.c_[iris['data'], iris['target']], columns= iris['feature_names'] + ['target'])
data.head()

	sepal length (cm)	sepal width (cm)	petal length (cm)	petal width (cm)
0	5.1	3.5	1.4	0.2
1	4.9	3.0	1.4	0.2
2	4.7	3.2	1.3	0.2
3	4.6	3.1	1.5	0.2
4	5.0	3.6	1.4	0.2

This block imports the necessary libraries, loads the Iris dataset using sklearn.datasets, and converts it into a pandas DataFrame for easier manipulation.

2. Calculate Gini Impurity¶

def gini_impurity(y):
    classes, counts = np.unique(y, return_counts=True)
    probabilities = counts / len(y)
    return 1 - np.sum(probabilities ** 2)

This function calculates the Gini impurity of a given set of labels. It is used to measure how impure a node is, with 0 indicating perfect purity.

3. Perform Data Splitting¶

def split_data(X, y, feature_index, threshold):
    left_mask = X[:, feature_index] <= threshold
    right_mask = ~left_mask
    return X[left_mask], X[right_mask], y[left_mask], y[right_mask]

This function splits the dataset based on a specified feature and threshold. It returns the left and right subsets of features and labels.

4. Calculate Information Gain¶

def information_gain(X, y, feature_index, threshold):
    parent_impurity = gini_impurity(y)
    X_left, X_right, y_left, y_right = split_data(X, y, feature_index, threshold)
    n = len(y)
    left_weight = len(y_left) / n
    right_weight = len(y_right) / n
    gain = parent_impurity - (left_weight * gini_impurity(y_left) + right_weight * gini_impurity(y_right))
    return gain

This function calculates the information gain from splitting the data using a specific feature and threshold.

5. Find the Best Split¶

def find_best_split(X, y):
    best_gain = 0
    best_feature = None
    best_threshold = None
    for feature_index in range(X.shape[1]):
        thresholds = np.unique(X[:, feature_index])
        for threshold in thresholds:
            gain = information_gain(X, y, feature_index, threshold)
            if gain > best_gain:
                best_gain = gain
                best_feature = feature_index
                best_threshold = threshold
    return best_feature, best_threshold

This function iterates over all features and possible thresholds to find the best split with the highest information gain.

6. Build the Decision Tree Recursively¶

def build_tree(X, y, depth=0, max_depth=5):
    if len(np.unique(y)) == 1 or depth == max_depth:
        return np.argmax(np.bincount(y.astype(int)))

    feature_index, threshold = find_best_split(X, y)
    if feature_index is None:
        return np.argmax(np.bincount(y.astype(int)))

    X_left, X_right, y_left, y_right = split_data(X, y, feature_index, threshold)
    left_subtree = build_tree(X_left, y_left, depth + 1, max_depth)
    right_subtree = build_tree(X_right, y_right, depth + 1, max_depth)

    return (feature_index, threshold, left_subtree, right_subtree)

This recursive function builds the decision tree by selecting the best split, creating subtrees, and returning the tree structure as a tuple.

7. Make Predictions¶

def predict(sample, tree):
    if isinstance(tree, int):
        return tree
    feature_index, threshold, left_subtree, right_subtree = tree
    if sample[feature_index] <= threshold:
        return predict(sample, left_subtree)
    else:
        return predict(sample, right_subtree)

This function traverses the tree for a given input sample and returns the predicted class.

8. Running and Evaluating The Model¶

X = data.iloc[:, :-1].values
y = data.iloc[:, -1].values

tree = build_tree(X, y)
predictions = [predict(sample, tree) for sample in X]
accuracy = np.sum(predictions == y) / len(y)
print(f"Accuracy: {accuracy * 100:.2f}%")

Accuracy: 100.00%

Using Scikit-learn for Decision Tree¶

from sklearn.tree import DecisionTreeClassifier, plot_tree
from sklearn.metrics import accuracy_score
from matplotlib import pyplot as plt

X = data.iloc[:, :-1].values
y = data.iloc[:, -1].values

clf = DecisionTreeClassifier()
clf.fit(X, y)

y_pred = clf.predict(X)
print(f"Accuracy: {accuracy_score(y, y_pred) * 100:.2f}%")

plt.figure(figsize=(15, 10))
plot_tree(clf, filled=True)
plt.show()

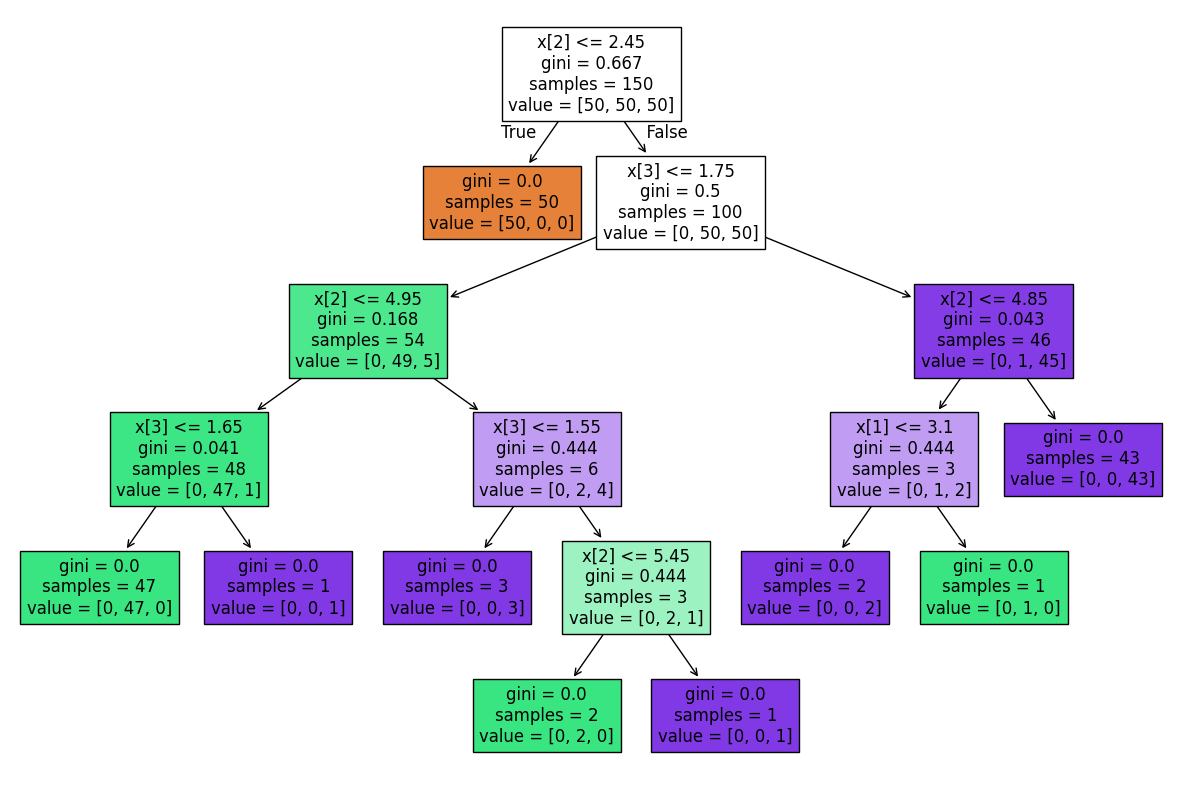

Accuracy: 100.00% Output

Here x[2] is the petal length, x[3] is the petal width, orange color represents setosa, green represents versicolor, and purple represents virginica

Conclusion¶

In this blog, we learned how decision trees work by implementing one from scratch using NumPy and pandas in a functional, procedural style. We calculated Gini impurity, found the best split using information gain, and recursively built a tree. After that, we compared our implementation with the scikit-learn decision tree classifier. This exercise helps in building a solid understanding of decision trees, which are a foundation for more advanced algorithms like random forests and gradient boosting.
